Injection & Extrusion Molding Machines
Servo injection molding machines and extrusion lines.
Showing 30 of 30 product lines · 145 models

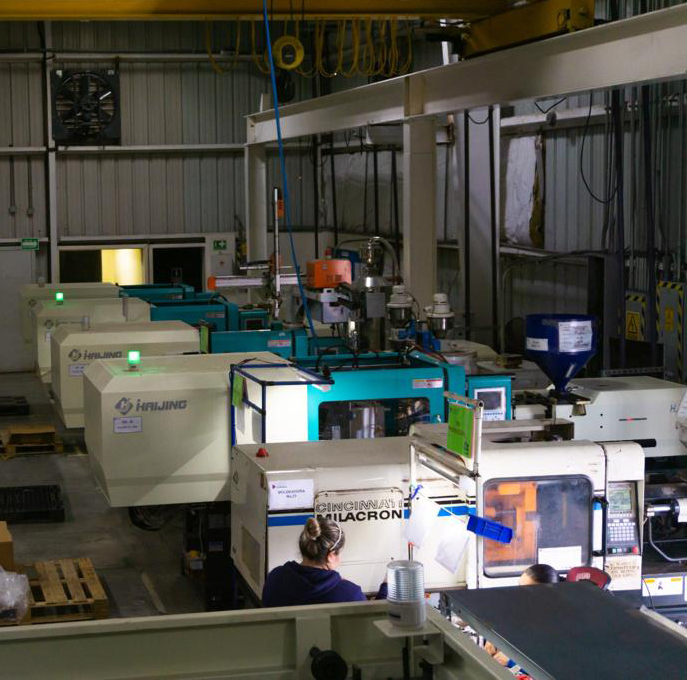

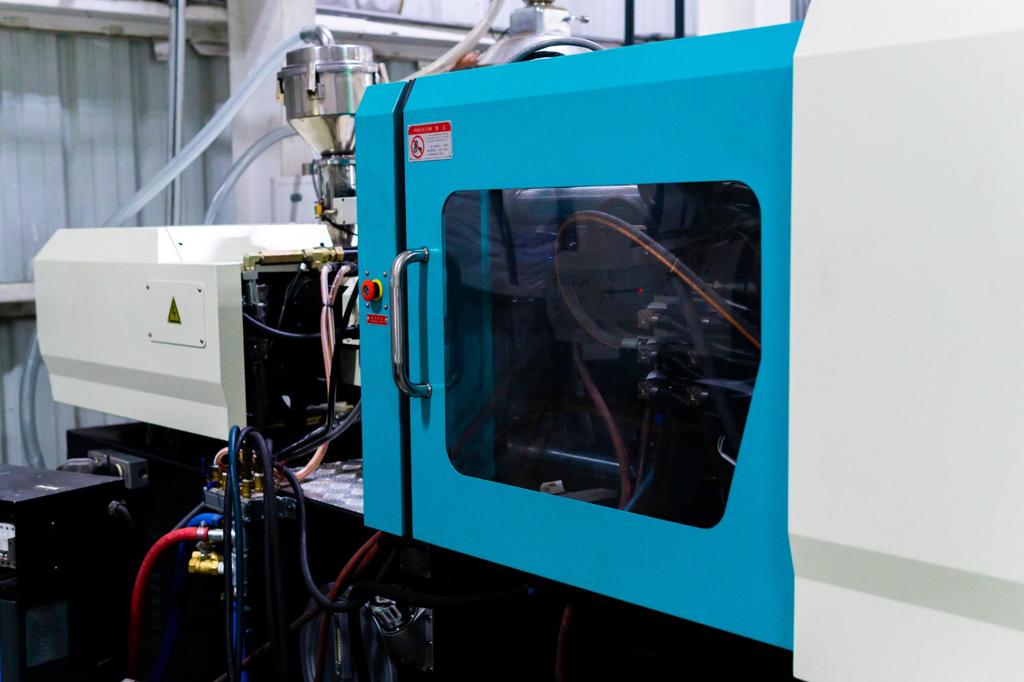

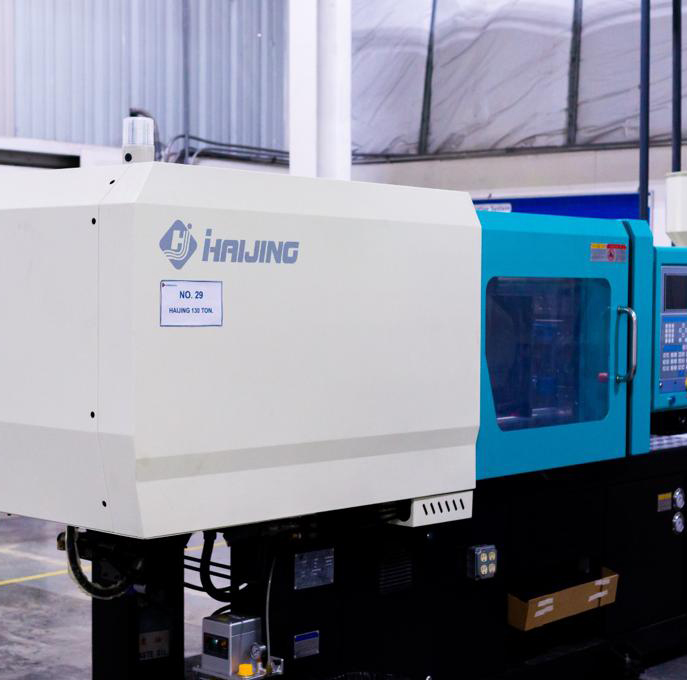

Servo-hydraulic injection molding machines from 45 to 550 tonnage. Reliable clamping, repeatable shot control and parts support through Sound Plastic.
53 models
| Model | Shot Capacity (cm³) | Injection Weight (g) | Screw Diameter (mm) | Injection Pressure (MPa) | Screw L/D Ratio | Screw Speed (rpm) | Clamp Tonnage (kN) | Toggle Stroke (mm) | Space Between Tie-Bars (mm) | Mold Thickness (mm) | Ejector Tonnage (kN) | Ejector Stroke (mm) | Location Hole Diameter | Ejector Number | Heater Power (kW) | Servo/Fix Motor Power (kW) | Oil Tank Capacity (L) | Max. Pump Pressure (MPa) | Machine Dimension L×W×H (m) | Machine Weight (t) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HJ 50S A | 61 | 56 | 26 | 183 | 24 | 0-200 | 500 | 270 | 280×277 | 120-350 | 17.6 | 55 | Φ100 | 1 | 3.1 | 8.6/5.5 | 150 | 14.5 | 3.35×1.16×1.56 | 2 | |
| HJ 50S B | 71 | 64 | 28 | 157 | 22 | 0-200 | 500 | 270 | 280×277 | 120-350 | 17.6 | 55 | Φ100 | 1 | 3.1 | 8.6/5.5 | 150 | 14.5 | 3.35×1.16×1.56 | 2 | |
| HJ 50S C | 81 | 74 | 30 | 137 | 20.6 | 0-200 | 500 | 270 | 280×277 | 120-350 | 17.6 | 55 | Φ100 | 1 | 3.1 | 8.6/5.5 | 150 | 14.5 | 3.35×1.16×1.56 | 2 | |
| HJ 70S A | 99 | 90 | 30 | 191 | 21 | 0-200 | 700 | 290 | 310×300 | 130-350 | 25 | 70 | Φ100 | 1 | 4.05 | 8.6/7.5 | 170 | 16 | 3.9×1.16×1.65 | 2.6 | |
| HJ 70S B | 113 | 102 | 32 | 168 | 20 | 0-200 | 700 | 290 | 310×300 | 130-350 | 25 | 70 | Φ100 | 1 | 4.05 | 8.6/7.5 | 170 | 16 | 3.9×1.16×1.65 | 2.6 | |
| HJ 70S C | 127 | 115 | 34 | 148 | 18.5 | 0-200 | 700 | 290 | 310×300 | 130-350 | 25 | 70 | Φ100 | 1 | 4.05 | 8.6/7.5 | 170 | 16 | 3.9×1.16×1.65 | 2.6 | |
| HJ 98S A | 136 | 125 | 32 | 238 | 23 | 0-220 | 980 | 320 | 360×360 | 100-350 | 34 | 100 | Φ100 | 4+1 | 7.4 | 12.6/13 | 136 | 17.5 | 4.3(4.6)×1.15×1.8 | 3 | |
| HJ 98S B | 175 | 165 | 36 | 189 | 20.5 | 0-220 | 980 | 320 | 360×360 | 100-350 | 34 | 100 | Φ100 | 4+1 | 7.4 | 12.6/13 | 136 | 17.5 | 4.3(4.6)×1.15×1.8 | 3 | |
| HJ 98S C | 215 | 203 | 40 | 153 | 18.5 | 0-220 | 980 | 320 | 360×360 | 100-350 | 34 | 100 | Φ100 | 4+1 | 7.4 | 12.6/13 | 136 | 17.5 | 4.3(4.6)×1.15×1.8 | 3 | |
| HJ 128S A | 195 | 184 | 36 | 215 | 23.8 | 0-220 | 1280 | 345 | 410×410 | 150-430 | 34 | 100 | Φ100 | 4+1 | 9.4 | 16/15 | 180 | 17.5 | 4.3(4.6)×1.2×1.8 | 4 | |
| HJ 128S B | 240 | 226 | 40 | 174 | 20.5 | 0-220 | 1280 | 345 | 410×410 | 150-430 | 34 | 100 | Φ100 | 4+1 | 9.4 | 16/15 | 180 | 17.5 | 4.3(4.6)×1.2×1.8 | 4 | |
| HJ 128S C | 305 | 288 | 45 | 138 | 18.2 | 0-220 | 1280 | 345 | 410×410 | 150-430 | 34 | 100 | Φ100 | 4+1 | 9.4 | 16/15 | 180 | 17.5 | 4.3(4.6)×1.2×1.8 | 4 | |
| HJ 138S A | 195 | 184 | 36 | 215 | 23.8 | 0-220 | 1380 | 400 | 410×410 | 150-450 | 34 | 100 | Φ100 | 4+1 | 9.4 | 16/15 | 180 | 17.5 | 4.4(4.7)×1.2×1.8 | 4.3 | |
| HJ 138S B | 240 | 226 | 40 | 174 | 20.5 | 0-220 | 1380 | 400 | 410×410 | 150-450 | 34 | 100 | Φ100 | 4+1 | 9.4 | 16/15 | 180 | 17.5 | 4.4(4.7)×1.2×1.8 | 4.3 | |
| HJ 138S C | 305 | 288 | 45 | 138 | 18.2 | 0-220 | 1380 | 400 | 410×410 | 150-450 | 34 | 100 | Φ100 | 4+1 | 9.4 | 16/15 | 180 | 17.5 | 4.4(4.7)×1.2×1.8 | 4.3 | |
| HJ 168S A | 275 | 259 | 40 | 234 | 23 | 0-240 | 1680 | 410 | 460×460 | 160-500 | 42 | 120 | Φ100 | 4+1 | 12.4 | 24/18.5 | 215 | 17.5 | 4.8(5.2)×1.25×1.9 | 5 | |
| HJ 168S B | 345 | 326 | 45 | 185 | 20.5 | 0-240 | 1680 | 410 | 460×460 | 160-500 | 42 | 120 | Φ100 | 4+1 | 12.4 | 24/18.5 | 215 | 17.5 | 4.8(5.2)×1.25×1.9 | 5 | |
| HJ 168S C | 430 | 405 | 50 | 150 | 18.4 | 0-240 | 1680 | 410 | 460×460 | 160-500 | 42 | 120 | Φ100 | 4+1 | 12.4 | 24/18.5 | 215 | 17.5 | 4.8(5.2)×1.25×1.9 | 5 | |
| HJ 208S A | 399 | 370 | 45 | 217 | 23 | 0-165 | 2080 | 460 | 510×510 | 180-550 | 49 | 150 | Φ100 | 4+1 | 14 | 34.7/22 | 230 | 17.5 | 5(5.7)×1.3×1.9 | 6 | |
| HJ 208S B | 490 | 460 | 50 | 176 | 20.5 | 0-165 | 2080 | 460 | 510×510 | 180-550 | 49 | 150 | Φ100 | 4+1 | 14 | 34.7/22 | 230 | 17.5 | 5(5.7)×1.3×1.9 | 6 | |
| HJ 208S C | 590 | 537 | 55 | 145 | 18.6 | 0-165 | 2080 | 460 | 510×510 | 180-550 | 49 | 150 | Φ100 | 4+1 | 14 | 34.7/22 | 230 | 17.5 | 5(5.7)×1.3×1.9 | 6 | |
| HJ 278S A | 588 | 552 | 50 | 232 | 25 | 0-165 | 2780 | 520 | 580×580 | 195-600 | 77 | 160 | Φ120 | 8+1 | 17.3 | 34.7/25 | 300 | 17.5 | 5.87(6.24)×1.5×2.2 | 8.5 | |
| HJ 278S B | 848 | 800 | 60 | 161 | 21 | 0-165 | 2780 | 520 | 580×580 | 195-600 | 77 | 160 | Φ120 | 8+1 | 17.3 | 34.7/25 | 300 | 17.5 | 5.87(6.24)×1.5×2.2 | 8.5 | |
| HJ 278S C | 995 | 906 | 65 | 137 | 19.4 | 0-165 | 2780 | 520 | 580×580 | 195-600 | 77 | 160 | Φ120 | 8+1 | 17.3 | 34.7/25 | 300 | 17.5 | 5.87(6.24)×1.5×2.2 | 8.5 | |
| HJ 328S A | 988 | 928 | 60 | 225 | 25 | 0-160 | 3280 | 580 | 670×670 | 220-655 | 77 | 180 | Φ150 | 8+1 | 25.3 | 41/30 | 620 | 17.5 | 6.6(7.2)×1.8×2.2 | 13 | |
| HJ 328S B | 1346 | 1266 | 70 | 165 | 21 | 0-160 | 3280 | 580 | 670×670 | 220-655 | 77 | 180 | Φ150 | 8+1 | 25.3 | 41/30 | 620 | 17.5 | 6.6(7.2)×1.8×2.2 | 13 | |
| HJ 328S C | 1545 | 1405 | 75 | 143 | 19 | 0-160 | 3280 | 580 | 670×670 | 220-655 | 77 | 180 | Φ150 | 8+1 | 25.3 | 41/30 | 620 | 17.5 | 6.6(7.2)×1.8×2.2 | 13 | |
| HJ 398S A | 1538 | 1446 | 70 | 212 | 24 | 0-150 | 3980 | 655 | 730×700 | 245-720 | 111 | 200 | Φ150 | 12+1 | 32.65 | 48.1/37 | 848 | 17.5 | 7.5(8)×1.9×2.3 | 15.5 | |
| HJ 398S B | 2010 | 1890 | 80 | 162 | 21 | 0-150 | 3980 | 655 | 730×700 | 245-720 | 111 | 200 | Φ150 | 12+1 | 32.65 | 48.1/37 | 848 | 17.5 | 7.5(8)×1.9×2.3 | 15.5 | |
| HJ 398S C | 2260 | 2056 | 85 | 143 | 19.8 | 0-150 | 3980 | 655 | 730×700 | 245-720 | 111 | 200 | Φ150 | 12+1 | 32.65 | 48.1/37 | 848 | 17.5 | 7.5(8)×1.9×2.3 | 15.5 | |
| HJ 468K A | 2530 | 2300 | 90 | 145 | 19 | 0-205 | 4680 | 800 | 790×770 | 300-780 | 125 | 200 | Φ200 | 12+1 | 45 | 55 | 630 | 16 | 8.5×2.1×2.2 | 18 | |
| HJ 508S A | 1877 | 1764 | 75 | 208 | 24 | 0-155 | 5080 | 755 | 830×800 | 265-800 | 111 | 250 | Φ150 | 12+1 | 40.8 | 34.7+34.7/45 | 919 | 17.5 | 8.3(8.8)×2×2.3 | 20 | |
| HJ 508S B | 2411 | 2267 | 85 | 162 | 21 | 0-155 | 5080 | 755 | 830×800 | 265-800 | 111 | 250 | Φ150 | 12+1 | 40.8 | 34.7+34.7/45 | 919 | 17.5 | 8.3(8.8)×2×2.3 | 20 | |
| HJ 508S C | 3011 | 2830 | 95 | 130 | 19 | 0-155 | 5080 | 755 | 830×800 | 265-800 | 111 | 250 | Φ150 | 12+1 | 40.8 | 34.7+34.7/45 | 919 | 17.5 | 8.3(8.8)×2×2.3 | 20 | |
| HJ 600S A | 2944 | 2679 | 85 | 174 | 20 | 0-105 | 6000 | 840 | 880×835 | 330-880 | 170 | 250 | Φ200 | 12+1 | 46 | 28.3+41/55 | 950 | 16 | 9(9.5)×2.1×2.4 | 30 | |
| HJ 600S B | 3300 | 3003 | 90 | 155 | 19 | 0-105 | 6000 | 840 | 880×835 | 330-880 | 170 | 250 | Φ200 | 12+1 | 46 | 28.3+41/55 | 950 | 16 | 9(9.5)×2.1×2.4 | 30 | |
| HJ 600S C | 3677 | 3346 | 95 | 140 | 18 | 0-105 | 6000 | 840 | 880×835 | 330-880 | 170 | 250 | Φ200 | 12+1 | 46 | 28.3+41/55 | 950 | 16 | 9(9.5)×2.1×2.4 | 30 | |
| HJ 650S A | 2800 | 2500 | 90 | 194 | 21.7 | 0-145 | 6500 | 920 | 910×910 | 400-950 | 230 | 260 | Φ200 | 16+1 | 48 | 41+48.1/30+30 | 1010 | 16 | 9.7(10.3)×2.3×2.5 | 33 | |
| HJ 650S B | 3450 | 3100 | 100 | 157 | 19.5 | 0-145 | 6500 | 920 | 910×910 | 400-950 | 230 | 260 | Φ200 | 16+1 | 48 | 41+48.1/30+30 | 1010 | 16 | 9.7(10.3)×2.3×2.5 | 33 | |
| HJ 650S C | 4000 | 3600 | 110 | 130 | 17.7 | 0-145 | 6500 | 920 | 910×910 | 400-950 | 230 | 260 | Φ200 | 16+1 | 48 | 41+48.1/30+30 | 1010 | 16 | 9.7(10.3)×2.3×2.5 | 33 | |
| HJ 750S A | 3636 | 3306 | 100 | 201 | 22 | 0-110 | 7500 | 980 | 960×960 | 400-1000 | 185 | 260 | Φ250 | 20+1 | 56.7 | 48.1+48.1/37+30 | 1100 | 16 | 10.5(11.3)×2.4×2.6 | 35 | |
| HJ 750S B | 4400 | 4003 | 110 | 166 | 20 | 0-110 | 7500 | 980 | 960×960 | 400-1000 | 185 | 260 | Φ250 | 20+1 | 56.7 | 48.1+48.1/37+30 | 1100 | 16 | 10.5(11.3)×2.4×2.6 | 35 | |
| HJ 750S C | 5236 | 4765 | 120 | 140 | 18.3 | 0-110 | 7500 | 980 | 960×960 | 400-1000 | 185 | 260 | Φ250 | 20+1 | 56.7 | 48.1+48.1/37+30 | 1100 | 16 | 10.5(11.3)×2.4×2.6 | 35 | |
| HJ 850S A | 3848 | 3502 | 100 | 201 | 22 | 0-125 | 8500 | 1040 | 1000×1000 | 400-1000 | 175 | 300 | Φ250 | 20+1 | 58 | 56.5+56.5/37+37 | 1200 | 16 | 11(11.6)×2.5×2.6 | 40 | |
| HJ 850S B | 4656 | 4237 | 110 | 166 | 20 | 0-125 | 8500 | 1040 | 1000×1000 | 400-1000 | 175 | 300 | Φ250 | 20+1 | 58 | 56.5+56.5/37+37 | 1200 | 16 | 11(11.6)×2.5×2.6 | 40 | |
| HJ 850S C | 5541 | 5043 | 120 | 140 | 18.3 | 0-125 | 8500 | 1040 | 1000×1000 | 400-1000 | 175 | 300 | Φ250 | 20+1 | 58 | 56.5+56.5/37+37 | 1200 | 16 | 11(11.6)×2.5×2.6 | 40 | |
| HJ 1100S A | 4847 | 4411 | 110 | 191 | 22 | 0-110 | 11000 | 1200 | 1150×1100 | 500-1200 | 235 | 350 | Φ250 | 20+1 | 68 | 45.2+45.2+65/55+55 | 1500 | 16 | 12.5×2.8×4 | 55 | |
| HJ 1100S B | 5768 | 5249 | 120 | 161 | 20 | 0-110 | 11000 | 1200 | 1150×1100 | 500-1200 | 235 | 350 | Φ250 | 20+1 | 68 | 45.2+45.2+65/55+55 | 1500 | 16 | 12.5×2.8×4 | 55 | |
| HJ 1100S C | 6769 | 6160 | 130 | 137 | 18.6 | 0-110 | 11000 | 1200 | 1150×1100 | 500-1200 | 235 | 350 | Φ250 | 20+1 | 68 | 45.2+45.2+65/55+55 | 1500 | 16 | 12.5×2.8×4 | 55 | |
| HJ 1650S A | 7043 | 6408 | 120 | 211 | 26 | 0-100 | 16500 | 1520 | 1500×1350 | 700-1500 | 318 | 350 | Φ315 | 29+1 | 92 | 65+65+65/55+55+55 | 2000 | 16 | 15×3.4×5 | 100 | |
| HJ 1650S B | 8266 | 7520 | 130 | 179 | 24 | 0-100 | 16500 | 1520 | 1500×1350 | 700-1500 | 318 | 350 | Φ315 | 29+1 | 92 | 65+65+65/55+55+55 | 2000 | 16 | 15×3.4×5 | 100 | |
| HJ 1650S C | 9586 | 8723 | 140 | 155 | 22.3 | 0-100 | 16500 | 1520 | 1500×1350 | 700-1500 | 318 | 350 | Φ315 | 29+1 | 92 | 65+65+65/55+55+55 | 2000 | 16 | 15×3.4×5 | 100 | |
| HJ 1650S D | 11006 | 10015 | 150 | 135 | 20.8 | 0-100 | 16500 | 1520 | 1500×1350 | 700-1500 | 318 | 350 | Φ315 | 29+1 | 92 | 65+65+65/55+55+55 | 2000 | 16 | 15×3.4×5 | 100 |
Qing Chen Yu
Qing Chen Yu Extrusion Molding Machines
High-performance extrusion molding machines for continuous profile and sheet production.
View Qing Chen Yu Extrusion Molding Machines details
HIGHSUN
HIGHSUN HX 98/370
The HXM 98/370 is a compact, energy-efficient injection molding machine from Highsun’s HXM series, specifically designed for precision molding of small to medium components. Featuring a responsive servo-driven hydraulic system, it provides a quiet, stable, and low-energy solution for manufacturing electronic, medical, and consumer product parts.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA98/370 | 32 | 24 | 128 | 116 | 4.0 | 287 | 68 | 10 | 240 | 980 | 315 | 390 | 150 | 360 x 340 | 56 | 100 | 5 | 17.5 | 16 | 10.9 | 4.12 x 1.05 x 1.79 | 2.9 | 130 | |
| HXB98/370 | 35 | 22 | 154 | 140 | 4.9 | 240 | 81 | 12 | 240 | 980 | 315 | 390 | 150 | 360 x 340 | 56 | 100 | 5 | 17.5 | 16 | 10.9 | 4.12 x 1.05 x 1.79 | 2.9 | 130 | |
| HXC98/370 | 38 | 21 | 181 | 164 | 5.7 | 203 | 95 | 15 | 240 | 980 | 315 | 390 | 150 | 360 x 340 | 56 | 100 | 5 | 17.5 | 16 | 10.9 | 4.12 x 1.05 x 1.79 | 2.9 | 130 | |
| HXD98/370 | 40 | 20 | 200 | 182 | 6.4 | 183 | 109 | 17 | 240 | 980 | 315 | 390 | 150 | 360 x 340 | 56 | 100 | 5 | 17.5 | 16 | 10.9 | 4.12 x 1.05 x 1.79 | 2.9 | 130 |
HIGHSUN
HIGHSUN HX 108/390
The HXM 108/390 is a high-precision, servo-driven injection molding machine developed for efficient and stable production of small to medium-sized parts. Utilizing a responsive servo-hydraulic system, it offers precise pressure and flow management alongside energy savings of up to 60%, making it ideal for electronics, packaging, and consumer product manufacturing.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXa108/390 | 28 | 22.5 | 101 | 92 | 3.2 | 388 | 62 | 8 | 290 | 1080 | 360 | 400 | 150 | 360 x 360 | 49 | 120 | 5 | 17.5 | 16 | 10.75 | 4.28 x 1.05 x 1.86 | 3.4 | 160 | |
| HXA108/390 | 32 | 23.2 | 132 | 120 | 4.2 | 297 | 82 | 11 | 290 | 1080 | 360 | 400 | 150 | 360 x 360 | 49 | 120 | 5 | 17.5 | 16 | 10.75 | 4.28 x 1.05 x 1.86 | 3.4 | 160 | |
| HXB108/390 | 36 | 20.6 | 168 | 153 | 5.3 | 234 | 103 | 13 | 290 | 1080 | 360 | 400 | 150 | 360 x 360 | 49 | 120 | 5 | 17.5 | 16 | 10.75 | 4.28 x 1.05 x 1.86 | 3.4 | 160 | |
| HXC108/390 | 40 | 20.6 | 207 | 188 | 6.6 | 190 | 128 | 18 | 290 | 1080 | 360 | 400 | 150 | 360 x 360 | 49 | 120 | 5 | 17.5 | 16 | 10.75 | 4.28 x 1.05 x 1.86 | 3.4 | 160 |
HIGHSUN
HIGHSUN HX 138/460
The HXM 138/460 is a precision servo injection molding machine designed for stable performance and reduced energy consumption. Utilizing a fast-response servo-hydraulic system and closed-loop control, it provides precise flow and pressure management, making it an ideal choice for high-accuracy components in the electronics, consumer goods, and medical sectors.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA138/460 | 35 | 23 | 192 | 175 | 6.1 | 240 | 101 | 12 | 265 | 1380 | 390 | 450 | 150 | 420 x 370 | 56 | 120 | 5 | 17.5 | 16 | 13.25 | 4.28 x 1.05 x 1.86 | 3.9 | 160 | |
| HXB138/460 | 38 | 22 | 226 | 206 | 7.2 | 203 | 119 | 15 | 265 | 1380 | 390 | 450 | 150 | 420 x 370 | 56 | 120 | 5 | 17.5 | 16 | 13.25 | 4.28 x 1.05 x 1.86 | 3.9 | 160 | |
| HXC138/460 | 42 | 20 | 277 | 252 | 8.8 | 166 | 146 | 15 | 265 | 1380 | 390 | 450 | 150 | 420 x 370 | 56 | 120 | 5 | 17.5 | 16 | 13.25 | 4.28 x 1.05 x 1.86 | 3.9 | 160 |
HIGHSUN
HIGHSUN HX 168/670
The HXM 168/670 is a stable and efficient servo-driven injection molding machine designed for precision production. Featuring high repeatability and a quick-response hydraulic system, it significantly reduces energy consumption while maintaining the accuracy required for medium-sized plastic products in the electronics, household, and automotive sectors.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXa168/670 | 38 | 24 | 260 | 237 | 8.3 | 260 | 117 | 13 | 220 | 1680 | 450 | 500 | 150 | 470 x 430 | 56 | 130 | 5 | 17.5 | 21 | 15.65 | 4.93 x 1.31 x 1.93 | 5.1 | 200 | |
| HXA168/670 | 42 | 22 | 318 | 289 | 10.1 | 212 | 143 | 15 | 220 | 1680 | 450 | 500 | 150 | 470 x 430 | 56 | 130 | 5 | 17.5 | 21 | 15.65 | 4.93 x 1.31 x 1.93 | 5.1 | 200 | |
| HXB168/670 | 45 | 21 | 365 | 332 | 11.7 | 185 | 164 | 20 | 220 | 1680 | 450 | 500 | 150 | 470 x 430 | 56 | 130 | 5 | 17.5 | 21 | 15.65 | 4.93 x 1.31 x 1.93 | 5.1 | 200 | |
| HXC168/670 | 48 | 20 | 416 | 378 | 13.3 | 163 | 187 | 23 | 220 | 1680 | 450 | 500 | 150 | 470 x 430 | 56 | 130 | 5 | 17.5 | 21 | 15.65 | 4.93 x 1.31 x 1.93 | 5.1 | 200 |
HIGHSUN
HIGHSUN HX 208/750
The HXM 208/750 is a high-efficiency servo injection molding machine from Highsun’s HXM series, engineered for precise performance and consistent product quality. Its integrated servo-hydraulic control system ensures a fast response and stable injection, delivering up to 60% power savings for the production of medium-sized functional components and packaging.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXa208/750 | 40 | 24 | 320 | 291 | 10.2 | 234 | 130 | 14 | 190 | 2080 | 500 | 550 | 200 | 530 x 480 | 56 | 140 | 5 | 17.5 | 21 | 16.85 | 5.38 x 1.28 x 2.04 | 6.0 | 200 | |
| HXA208/750 | 42 | 23 | 353 | 321 | 11.3 | 212 | 143 | 15 | 190 | 2080 | 500 | 550 | 200 | 530 x 480 | 56 | 140 | 5 | 17.5 | 21 | 16.85 | 5.38 x 1.28 x 2.04 | 6.0 | 200 | |
| HXB208/750 | 45 | 22 | 405 | 369 | 13.0 | 185 | 164 | 20 | 190 | 2080 | 500 | 550 | 200 | 530 x 480 | 56 | 140 | 5 | 17.5 | 21 | 16.85 | 5.38 x 1.28 x 2.04 | 6.0 | 200 | |
| HXC208/750 | 48 | 21 | 461 | 419 | 14.7 | 163 | 187 | 23 | 190 | 2080 | 500 | 550 | 200 | 530 x 480 | 56 | 140 | 5 | 17.5 | 21 | 16.85 | 5.38 x 1.28 x 2.04 | 6.0 | 200 |
HIGHSUN
HIGHSUN HX 258-I/870
The HXM 258-I/870 is a balanced and efficient servo injection molding machine built for medium-sized plastic product manufacturing. By combining a rapid-response servo-hydraulic drive with precise pressure and flow control, it delivers high molding repeatability and reduced cycle times for industrial, packaging, and consumer goods.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA258-I/870 | 45 | 24 | 381 | 347 | 12.2 | 229 | 167 | 20 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 18.1 | 5.76 x 1.44 x 2.15 | 7.4 | 280 | |
| HXB258-I/870 | 50 | 21.6 | 471 | 428 | 15.1 | 186 | 206 | 26 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 18.1 | 5.76 x 1.44 x 2.15 | 7.4 | 280 | |
| HXC258-I/870 | 55 | 19.6 | 570 | 518 | 18.2 | 153 | 219 | 33 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 18.1 | 5.76 x 1.44 x 2.15 | 7.4 | 280 | |
| HXD258-I/870 | 60 | 19.5 | 678 | 617 | 21.7 | 129 | 297 | 40 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 18.1 | 5.76 x 1.44 x 2.15 | 7.4 | 280 |
HIGHSUN
HIGHSUN HX 258-II/1100
The HXM 258‑II/1100 is a precise and stable servo injection molding machine designed for the efficient production of medium-sized plastic parts. Featuring closed-loop servo-hydraulic control, it achieves rapid response times and up to 60% energy savings while maintaining the accurate injection pressure required for technical molded parts and general engineering products.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA258-II/1100 | 50 | 23.4 | 490 | 446 | 15.7 | 224 | 204 | 26 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 22.55 | 5.92 x 1.44 x 2.15 | 7.5 | 280 | |
| HXB258-II/1100 | 55 | 21.5 | 593 | 540 | 19 | 185 | 247 | 33 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 22.55 | 5.92 x 1.44 x 2.15 | 7.5 | 280 | |
| HXC258-II/1100 | 60 | 19.5 | 706 | 643 | 22.6 | 155 | 294 | 40 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 22.55 | 5.92 x 1.44 x 2.15 | 7.5 | 280 | |
| HXD258-II/1100 | 65 | 19.3 | 829 | 754 | 26.5 | 132 | 345 | 45 | 200 | 2580 | 560 | 610 | 200 | 580 x 540 | 86 | 150 | 9 | 17.5 | 30 | 22.55 | 5.92 x 1.44 x 2.15 | 7.5 | 280 |
HIGHSUN
HIGHSUN HX 288-I/1100
The HXM 288‑I/1100 is a high-efficiency servo injection molding machine engineered for reliability and precision in medium-sized manufacturing applications. Utilizing a high-efficiency servo-hydraulic drive and closed-loop control, it provides consistent hydraulic performance and rapid cycle response, making it ideal for the production of automotive, packaging, and general industrial components.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA288-I/1100 | 50 | 23.4 | 490 | 446 | 15.7 | 224 | 204 | 26 | 200 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 30 | 22.55 | 6.10 x 1.45 x 2.15 | 8.4 | 320 | |
| HXB288-I/1100 | 55 | 21.5 | 593 | 540 | 19 | 185 | 247 | 33 | 200 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 30 | 22.55 | 6.10 x 1.45 x 2.15 | 8.4 | 320 | |
| HXC288-I/1100 | 60 | 19.5 | 706 | 643 | 22.6 | 155 | 294 | 40 | 200 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 30 | 22.55 | 6.10 x 1.45 x 2.15 | 8.4 | 320 | |
| HXD288-I/1100 | 65 | 19.3 | 829 | 754 | 26.5 | 132 | 345 | 45 | 200 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 30 | 22.55 | 6.10 x 1.45 x 2.15 | 8.4 | 320 |
HIGHSUN
HIGHSUN HX 288-II/1600
The HXM 288‑II/1600 is a servo-driven, energy-saving injection molding machine designed for medium-sized operations requiring high precision and stability. Equipped with a fast-response servo-hydraulic system and closed-loop control, it delivers consistent injection performance, shorter cycle times, and reduced power consumption for industrial and automotive manufacturing.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA288-II/1600 | 55 | 23 | 736 | 670 | 23.6 | 218 | 251 | 33 | 190 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.38 x 1.49 x 2.15 | 8.6 | 320 | |
| HXB288-II/1600 | 60 | 21.1 | 876 | 797 | 28.7 | 183 | 299 | 40 | 190 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.38 x 1.49 x 2.15 | 8.6 | 320 | |
| HXC288-II/1600 | 65 | 19.5 | 1028 | 936 | 33 | 156 | 350 | 45 | 190 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.38 x 1.49 x 2.15 | 8.6 | 320 | |
| HXD288-II/1600 | 70 | 19.4 | 1193 | 1085 | 38.2 | 135 | 406 | 50 | 190 | 2880 | 600 | 630 | 230 | 620 x 580 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.38 x 1.49 x 2.15 | 8.6 | 320 |
HIGHSUN
HIGHSUN HX 328/1600
The HXM 328/1600 is an efficient and stable servo injection molding machine built for high-precision production of medium-to-large molded parts. By combining servo-hydraulic precision with rapid response times, it ensures steady injection performance and reduced operational costs for parts requiring high dimensional accuracy.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA328/1600 | 55 | 23 | 736 | 670 | 23.6 | 218 | 251 | 33 | 190 | 3280 | 640 | 690 | 230 | 670 x 610 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.53 x 1.58 x 2.15 | 9.2 | 370 | |
| HXB328/1600 | 60 | 21.1 | 876 | 797 | 28.7 | 183 | 299 | 40 | 190 | 3280 | 640 | 690 | 230 | 670 x 610 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.53 x 1.58 x 2.15 | 9.2 | 370 | |
| HXC328/1600 | 65 | 19.5 | 1028 | 936 | 33 | 156 | 350 | 45 | 190 | 3280 | 640 | 690 | 230 | 670 x 610 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.53 x 1.58 x 2.15 | 9.2 | 370 | |
| HXD328/1600 | 70 | 19.4 | 1193 | 1085 | 38.2 | 135 | 406 | 50 | 190 | 3280 | 640 | 690 | 230 | 670 x 610 | 86 | 170 | 13 | 17.5 | 40 | 24.15 | 6.53 x 1.58 x 2.15 | 9.2 | 370 |
HIGHSUN
HIGHSUN HX 368-I/2300
The HXM 368‑I/2300 is an energy-saving servo injection molding machine designed for stable performance and high precision in medium-to-large plastic part production. Featuring a responsive servo-hydraulic control system, it delivers high injection consistency and fast cycle times, making it a highly efficient solution for manufacturing industrial containers and structural components.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA368-I/2300 | 60 | 22 | 989 | 900 | 31.7 | 239 | 229 | 40 | 160 | 3680 | 710 | 750 | 250 | 720 x 690 | 134 | 180 | 13 | 17.5 | 40 | 27.3 | 6.87 x 1.89 x 2.16 | 12.6 | 420 | |
| HXB368-I/2300 | 65 | 21 | 1161 | 1056 | 37.2 | 204 | 268 | 42 | 160 | 3680 | 710 | 750 | 250 | 720 x 690 | 134 | 180 | 13 | 17.5 | 40 | 27.3 | 6.87 x 1.89 x 2.16 | 12.6 | 420 | |
| HXC368-I/2300 | 70 | 20 | 1346 | 1225 | 43.2 | 176 | 311 | 47 | 160 | 3680 | 710 | 750 | 250 | 720 x 690 | 134 | 180 | 13 | 17.5 | 40 | 27.3 | 6.87 x 1.89 x 2.16 | 12.6 | 420 |
HIGHSUN
HIGHSUN HX 368-II/2400
The HXM 368‑II/2400 is a precise and reliable servo injection molding machine developed for medium-to-large applications. Utilizing closed-loop servo-hydraulic control, it delivers stable injection pressure and fast response times, achieving up to 60% energy savings while maintaining the strength and consistency required for automotive and household components.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA368-II/2400 | 65 | 22 | 1211 | 1102 | 38.8 | 198 | 307 | 42 | 160 | 3680 | 710 | 750 | 250 | 720 x 690 | 134 | 180 | 13 | 17.5 | 40 | 32.2 | 7.4 x 1.99 x 2.24 | 13.0 | 420 | |
| HXB368-II/2400 | 70 | 21 | 1401 | 1278 | 45.0 | 171 | 356 | 47 | 160 | 3680 | 710 | 750 | 250 | 720 x 690 | 134 | 180 | 13 | 17.5 | 40 | 32.2 | 7.4 x 1.99 x 2.24 | 13.0 | 420 | |
| HXC368-II/2400 | 75 | 20 | 1612 | 1467 | 81.7 | 149 | 408 | 52 | 160 | 3680 | 710 | 750 | 250 | 720 x 690 | 134 | 180 | 13 | 17.5 | 40 | 32.2 | 7.4 x 1.99 x 2.24 | 13.0 | 420 |
HIGHSUN
HIGHSUN HX 428-I/2400
The HXM 428‑I/2400 is a high-precision servo injection molding machine engineered for stability and energy efficiency in medium-to-large plastic part production. By combining a fast-response servo-hydraulic drive with precise pressure control, it delivers consistent, high-quality results with low energy consumption for demanding industrial and automotive applications.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA428-I/2400 | 65 | 22 | 1211 | 1102 | 38.8 | 198 | 307 | 42 | 160 | 4280 | 770 | 800 | 280 | 770 x 740 | 134 | 210 | 13 | 17.5 | 40 | 32.2 | 7.43 x 1.93 x 2.25 | 14.6 | 420 | |
| HXB428-I/2400 | 70 | 21 | 1401 | 1278 | 45.0 | 171 | 356 | 47 | 160 | 4280 | 770 | 800 | 280 | 770 x 740 | 134 | 210 | 13 | 17.5 | 40 | 32.2 | 7.43 x 1.93 x 2.25 | 14.6 | 420 |
HIGHSUN
HIGHSUN HX 428-II/3300
The HXM 428‑II/3300 is a high-performance, energy-saving injection molding machine designed for the precise production of medium-to-large scale plastic components. It utilizes a dual-servo motor setup to provide up to 60% energy savings while maintaining the consistent pressure and long-term reliability required for automotive and industrial manufacturing.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA428-II/3300 | 70 | 21 | 1539 | 1400 | 49.3 | 217 | 387 | 50 | 190 | 4280 | 770 | 800 | 280 | 770 x 740 | 134 | 210 | 13 | 17.5 | 30+30 | 35.55 | 7.63 x 2.02 x 2.32 | 15.2 | 530 | |
| HXB428-II/3300 | 75 | 20 | 1767 | 1608 | 56.7 | 189 | 444 | 55 | 190 | 4280 | 770 | 800 | 280 | 770 x 740 | 134 | 210 | 13 | 17.5 | 30+30 | 35.55 | 7.63 x 2.02 x 2.32 | 15.2 | 530 | |
| HXC428-II/3300 | 80 | 19 | 2010 | 1829 | 64.5 | 166 | 505 | 65 | 190 | 4280 | 770 | 800 | 280 | 770 x 740 | 134 | 210 | 13 | 17.5 | 30+30 | 35.55 | 7.63 x 2.02 x 2.32 | 15.2 | 530 |
HIGHSUN
HIGHSUN HX 488-I/3300
The HXM 488‑I/3300 is an efficient servo-driven injection molding machine developed for the stable and precise production of medium-to-large plastic components. Featuring a high-response servo-hydraulic control system, it ensures steady injection pressure and fast cycle times, delivering both high molding accuracy and significant energy savings.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA488-I/3300 | 70 | 21 | 1539 | 1400 | 49.3 | 217 | 387 | 50 | 190 | 4880 | 830 | 820 | 300 | 820 x 800 | 134 | 210 | 13 | 17.5 | 30+30 | 35.55 | 7.77 x 2.02 x 2.36 | 17.3 | 530 | |
| HXB488-I/3300 | 75 | 20 | 1767 | 1608 | 56.7 | 189 | 444 | 55 | 190 | 4880 | 830 | 820 | 300 | 820 x 800 | 134 | 210 | 13 | 17.5 | 30+30 | 35.55 | 7.77 x 2.02 x 2.36 | 17.3 | 530 |
HIGHSUN
HIGHSUN HX 488-II/3800
The HXM 488‑II/3800 is a high-precision, servo-driven injection molding machine built for the stable and efficient production of medium-to-large plastic components. By combining a responsive servo-hydraulic drive with closed-loop control, it delivers consistent molding quality, reduced cycle times, and lower operating costs for high-tonnage applications.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA488-II/3800 | 75 | 21 | 1855 | 1688 | 59.5 | 209 | 437 | 55 | 150 | 4880 | 830 | 820 | 300 | 820 x 800 | 134 | 210 | 13 | 17.5 | 30+30 | 38.55 | 8.05 x 2.07 x 2.41 | 17.9 | 630 | |
| HXB488-II/3800 | 80 | 20 | 2111 | 1921 | 67.7 | 183 | 498 | 65 | 150 | 4880 | 830 | 820 | 300 | 820 x 800 | 134 | 210 | 13 | 17.5 | 30+30 | 38.55 | 8.05 x 2.07 x 2.41 | 17.9 | 630 | |
| HXC488-II/3800 | 85 | 19 | 2383 | 2168 | 76.4 | 162 | 562 | 70 | 150 | 4880 | 830 | 820 | 300 | 820 x 800 | 134 | 210 | 13 | 17.5 | 30+30 | 38.55 | 8.05 x 2.07 x 2.41 | 17.9 | 630 |
HIGHSUN
HIGHSUN HX 558-I/3800
The HXM 558‑I/3800 is a high-precision servo injection molding machine engineered for the consistent and efficient production of high-strength plastic parts. It features a responsive servo-hydraulic system that delivers accurate pressure control and superior energy savings, making it a reliable choice for large-scale automotive and industrial manufacturing.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA558-I/3800 | 75 | 21 | 1855 | 1688 | 59.5 | 209 | 437 | 55 | 150 | 5580 | 870 | 830 | 330 | 870 x 840 | 193 | 230 | 17 | 17.5 | 30+30 | 38.55 | 8.08 x 2.07 x 2.47 | 21.6 | 630 | |
| HXB558-I/3800 | 80 | 20 | 2111 | 1921 | 67.7 | 183 | 498 | 65 | 150 | 5580 | 870 | 830 | 330 | 870 x 840 | 193 | 230 | 17 | 17.5 | 30+30 | 38.55 | 8.08 x 2.07 x 2.47 | 21.6 | 630 |
HIGHSUN
HIGHSUN HX 558-II/4800
The HXM 558‑II/4800 is a high-precision servo injection molding machine engineered for large-scale manufacturing with a focus on stable performance and energy efficiency. Using a closed-loop servo-hydraulic system, it ensures accurate control and fast response times, enhancing both productivity and product consistency for technically demanding molded parts.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA558-II/4800 | 80 | 21 | 2362 | 2149 | 75.8 | 206 | 488 | 65 | 150 | 5580 | 870 | 830 | 330 | 870 x 840 | 193 | 230 | 17 | 17.5 | 30+40 | 42.45 | 8.35 x 2.19 x 2.47 | 22.3 | 750 | |
| HXB558-II/4800 | 85 | 20 | 2667 | 2426 | 85.5 | 182 | 551 | 70 | 150 | 5580 | 870 | 830 | 330 | 870 x 840 | 193 | 230 | 17 | 17.5 | 30+40 | 42.45 | 8.35 x 2.19 x 2.47 | 22.3 | 750 | |
| HXC558-II/4800 | 90 | 19 | 2990 | 2720 | 95.9 | 162 | 618 | 80 | 150 | 5580 | 870 | 830 | 330 | 870 x 840 | 193 | 230 | 17 | 17.5 | 30+40 | 42.45 | 8.35 x 2.19 x 2.47 | 22.3 | 750 |
HIGHSUN
HIGHSUN HX 658-I/4800
The HXM 658‑I/4800 is a reliable and efficient servo injection molding machine designed for the precise production of large plastic components. Utilizing closed-loop control and servo-hydraulic technology, it delivers rapid response times and up to 60% energy savings, making it ideal for stable, high-quality manufacturing of automotive and appliance parts.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA658-I/4800 | 75 | 22 | 2076 | 1889 | 66.6 | 234 | 429 | 55 | 150 | 6580 | 970 | 950 | 350 | 970 x 920 | 227 | 260 | 17 | 17.5 | 30+40 | 42.45 | 9.37 x 2.19 x 2.48 | 29.1 | 750 | |
| HXB658-I/4800 | 80 | 21 | 2362 | 2149 | 75.8 | 206 | 488 | 65 | 150 | 6580 | 970 | 950 | 350 | 970 x 920 | 227 | 260 | 17 | 17.5 | 30+40 | 42.45 | 9.37 x 2.19 x 2.48 | 29.1 | 750 |
HIGHSUN
HIGHSUN HX 658-II/5700
The HXM 658‑II/5700 is a high-performance, energy-saving injection molding machine designed for large-scale production requiring high structural strength and dimensional accuracy. By combining a dual-servo motor system with precise hydraulic control, it delivers fast response times and improved cycle efficiency for manufacturing high-strength automotive and industrial components.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA658-II/5700 | 85 | 22 | 2610 | 2375 | 83.7 | 221 | 496 | 70 | 145 | 6580 | 970 | 950 | 350 | 970 x 920 | 227 | 260 | 17 | 17.5 | 40+40 | 53.7 | 9.52 x 2.27 x 2.65 | 30.8 | 850 | |
| HXB658-II/5700 | 90 | 21 | 2926 | 2663 | 93.9 | 197 | 556 | 80 | 145 | 6580 | 970 | 950 | 350 | 970 x 920 | 227 | 260 | 17 | 17.5 | 40+40 | 53.7 | 9.52 x 2.27 x 2.65 | 30.8 | 850 | |
| HXC658-II/5700 | 95 | 20 | 3260 | 2967 | 104.6 | 177 | 620 | 85 | 145 | 6580 | 970 | 950 | 350 | 970 x 920 | 227 | 260 | 17 | 17.5 | 40+40 | 53.7 | 9.52 x 2.27 x 2.65 | 30.8 | 850 | |
| HXD658-II/5700 | 100 | 19 | 3612 | 3287 | 115.9 | 159 | 687 | 90 | 145 | 6580 | 970 | 950 | 350 | 970 x 920 | 227 | 260 | 17 | 17.5 | 40+40 | 53.7 | 9.52 x 2.27 x 2.65 | 30.8 | 850 |
HIGHSUN
HIGHSUN HX 750/6100
The HXM 750/6100 is a high-tonnage, energy-saving injection molding machine built for the precision production of large plastic components. Featuring a dual-servo motor system and a robust clamping unit, it delivers the fast response and stable injection performance required for high-quality industrial containers, automotive parts, and appliance housings.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA750/6100 | 90 | 23 | 2861 | 2603 | 91.8 | 213 | 546 | 76 | 110 | 7500 | 1020 | 980 | 400 | 1020 x 970 | 230 | 280 | 21 | 17.5 | 40+40 | 62.2 | 11.60 x 2.28 x 2.74 | 39.0 | 1000 | |
| HXB750/6100 | 95 | 22 | 3188 | 2901 | 102.3 | 191 | 608 | 85 | 110 | 7500 | 1020 | 980 | 400 | 1020 x 970 | 230 | 280 | 21 | 17.5 | 40+40 | 62.2 | 11.60 x 2.28 x 2.74 | 39.0 | 1000 | |
| HXC750/6100 | 100 | 21 | 3534 | 3216 | 113.4 | 173 | 674 | 90 | 110 | 7500 | 1020 | 980 | 400 | 1020 x 970 | 230 | 280 | 21 | 17.5 | 40+40 | 62.2 | 11.60 x 2.28 x 2.74 | 39.0 | 1000 | |
| HXD750/6100 | 105 | 20 | 3894 | 3543 | 124.9 | 157 | 743 | 98 | 110 | 7500 | 1020 | 980 | 400 | 1020 x 970 | 230 | 280 | 21 | 17.5 | 40+40 | 62.2 | 11.60 x 2.28 x 2.74 | 39.0 | 1000 |
HIGHSUN
HIGHSUN HX 850/7300
The HXM 850/7300 is a high-capacity, servo-driven injection molding machine engineered for the precision molding of large, complex plastic products. By combining closed-loop control with advanced servo-hydraulic technology, it ensures substantial energy savings, reduced cycle times, and the high-strength performance required for industrial and automotive manufacturing.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA850/7300 | 95 | 22 | 3849 | 3502 | 123.5 | 191 | 608 | 85 | 110 | 8500 | 1120 | 1050 | 400 | 1070 x 1020 | 227 | 300 | 21 | 17.5 | 40+40 | 62.2 | 12.18 x 2.40 x 2.74 | 40.4 | 1000 | |
| HXB850/7300 | 100 | 21 | 4264 | 3880 | 136.8 | 173 | 674 | 90 | 110 | 8500 | 1120 | 1050 | 400 | 1070 x 1020 | 227 | 300 | 21 | 17.5 | 40+40 | 62.2 | 12.18 x 2.40 x 2.74 | 40.4 | 1000 | |
| HXC850/7300 | 105 | 20 | 4701 | 4278 | 150.8 | 157 | 743 | 98 | 110 | 8500 | 1120 | 1050 | 400 | 1070 x 1020 | 227 | 300 | 21 | 17.5 | 40+40 | 62.2 | 12.18 x 2.40 x 2.74 | 40.4 | 1000 |
HIGHSUN
HIGHSUN HX 1100/11200
The HXM 1100/11200 is a high-performance, energy-saving injection molding machine designed for large and technically demanding plastic components. Equipped with a triple-servo motor setup, it provides the precise control and responsive performance necessary for manufacturing industrial parts and automotive panels with consistent accuracy and lower operational costs.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA1100/11200 | 110 | 22 | 5797 | 5275 | 186.0 | 194 | 858 | 101 | 110 | 11000 | 1220 | 1170 | 450 | 1160 x 1160 | 260 | 320 | 21 | 17.5 | 40+40+40 | 85.5 | 12.18 x 2.65 x 3.50 | 50.2 | 1200 | |
| HXB1100/11200 | 120 | 21 | 6898 | 6278 | 221.4 | 163 | 1021 | 112 | 110 | 11000 | 1220 | 1170 | 450 | 1160 x 1160 | 260 | 320 | 21 | 17.5 | 40+40+40 | 85.5 | 12.18 x 2.65 x 3.50 | 50.2 | 1200 | |
| HXC1100/11200 | 130 | 19 | 8096 | 7367 | 259.8 | 139 | 1198 | 125 | 110 | 11000 | 1220 | 1170 | 450 | 1160 x 1160 | 260 | 320 | 21 | 17.5 | 40+40+40 | 85.5 | 12.18 x 2.65 x 3.50 | 50.2 | 1200 |
HIGHSUN
HIGHSUN HX 1300/13000
The HXM 1300/13000 is a high-precision, servo-driven injection molding machine designed for heavy-duty plastic production. By integrating a high-performance triple-servo hydraulic drive, it delivers precise pressure control and fast cycle times, making it a reliable solution for large-scale automotive, industrial, and structural plastic applications.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA1300/13000 | 120 | 24 | 7012 | 6380 | 225.0 | 188 | 930 | 101 | 95 | 13000 | 1400 | 1300 | 550 | 1320 x 1280 | 300 | 400 | 21 | 17.5 | 40+40+40 | 99.8 | 13.76 x 2.70 x 3.90 | 66.6 | 1400 | |
| HXB1300/13000 | 130 | 23 | 8229 | 7488 | 264.1 | 160 | 1092 | 115 | 95 | 13000 | 1400 | 1300 | 550 | 1320 x 1280 | 300 | 400 | 21 | 17.5 | 40+40+40 | 99.8 | 13.76 x 2.70 x 3.90 | 66.6 | 1400 | |
| HXC1300/13000 | 140 | 21 | 9544 | 8685 | 306.3 | 138 | 1266 | 135 | 95 | 13000 | 1400 | 1300 | 550 | 1320 x 1280 | 300 | 400 | 21 | 17.5 | 40+40+40 | 99.8 | 13.76 x 2.70 x 3.90 | 66.6 | 1400 |
HIGHSUN
HIGHSUN HX 1500/15500
The HXM 1500/15500 is a high-tonnage, energy-efficient injection molding machine designed for the high-precision production of large-scale plastic components. It features a rigid structural design and a multi-motor servo system that reduces energy consumption by up to 60% while ensuring stable pressure control for complex industrial applications.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA1500/15500 | 130 | 23 | 8627 | 7851 | 276.9 | 180 | 1240 | 120 | 100 | 15000 | 1500 | 1500 | 700 | 1450 x 1350 | 380 | 400 | 25 | 17.5 | 40+40+40+40 | 118.25 | 14.00 x 3.30 x 4.00 | 93.6 | 1600 | |
| HXB1500/15500 | 140 | 22 | 10005 | 9105 | 321.1 | 155 | 1438 | 140 | 100 | 15000 | 1500 | 1500 | 700 | 1450 x 1350 | 380 | 400 | 25 | 17.5 | 40+40+40+40 | 118.25 | 14.00 x 3.30 x 4.00 | 93.6 | 1600 | |
| HXC1500/15500 | 150 | 21 | 11486 | 10452 | 368.8 | 135 | 1651 | 160 | 100 | 15000 | 1500 | 1500 | 700 | 1450 x 1350 | 380 | 400 | 25 | 17.5 | 40+40+40+40 | 118.25 | 14.00 x 3.30 x 4.00 | 93.6 | 1600 |
HIGHSUN
HIGHSUN HX 2000/19000
The HXM 2000/19000 is a large-scale servo energy-saving injection molding machine built for the precision manufacturing of heavy-duty plastic components. It combines a robust clamping unit with a high-capacity servo system to deliver stable pressure, fast response times, and significant power savings for industrial and structural applications.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA2000/19000 | 130 | 23 | 9291 | 8455 | 276.9 | 204 | 1194 | 109 | 90 | 20000 | 1600 | 1560 | 710 | 1620 x 1480 | 520 | 400 | 33 | 17.5 | 40+40+47+47 | 119.1 | 15.60 x 3.50 x 4.00 | 133.4 | 2000 | |
| HXB2000/19000 | 140 | 22 | 10775 | 9805 | 321.1 | 176 | 1385 | 130 | 90 | 20000 | 1600 | 1560 | 710 | 1620 x 1480 | 520 | 400 | 33 | 17.5 | 40+40+47+47 | 119.1 | 15.60 x 3.50 x 4.00 | 133.4 | 2000 | |
| HXC2000/19000 | 150 | 21 | 12370 | 11256 | 368.6 | 153 | 1590 | 150 | 90 | 20000 | 1600 | 1560 | 710 | 1620 x 1480 | 520 | 400 | 33 | 17.5 | 40+40+47+47 | 119.1 | 15.60 x 3.50 x 4.00 | 133.4 | 2000 | |
| HXD2000/19000 | 160 | 20 | 14074 | 12807 | 419.4 | 135 | 1809 | 162 | 90 | 20000 | 1600 | 1560 | 710 | 1620 x 1480 | 520 | 400 | 33 | 17.5 | 40+40+47+47 | 119.1 | 15.60 x 3.50 x 4.00 | 133.4 | 2000 |
HIGHSUN
HIGHSUN HX 2200/32000
The HXM 2200/32000 is a high-capacity, energy-saving injection molding machine designed for the production of large, complex, and technically demanding plastic parts. Utilizing a high-response servo-hydraulic system, it offers up to 60% energy savings and exceptional repeatability for heavy-duty applications like automotive panels and large logistics containers.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA2200/32000 | 155 | 23 | 17737 | 16140 | 569.3 | 181 | 1342 | 100 | 66 | 22000 | 1950 | 1700 | 780 | 1800 x 1620 | 520 | 450 | 33 | 17.5 | 40+40+47+47 | 162.15 | 19.40 x 3.90 x 5.10 | 154.5 | 2200 | |
| HXB2200/32000 | 165 | 22 | 20099 | 18290 | 645.1 | 160 | 1521 | 115 | 66 | 22000 | 1950 | 1700 | 780 | 1800 x 1620 | 520 | 450 | 33 | 17.5 | 40+40+47+47 | 162.15 | 19.40 x 3.90 x 5.10 | 154.5 | 2200 | |
| HXC2200/32000 | 175 | 21 | 22609 | 20574 | 725.7 | 142 | 1711 | 135 | 66 | 22000 | 1950 | 1700 | 780 | 1800 x 1620 | 520 | 450 | 33 | 17.5 | 40+40+47+47 | 162.15 | 19.40 x 3.90 x 5.10 | 154.5 | 2200 |
HIGHSUN
HIGHSUN HX 2500/44000
The HXM 2500/44000 is a heavy-duty, servo-driven injection molding machine designed for large-scale industrial and structural applications. It integrates a massive clamping force with a high-capacity hydraulic system to produce oversized components, such as automotive parts and industrial crates, with high precision and energy efficiency.
| Model | Screw diameter (mm) | Screw L/D ratio (L/D) | Injection capacity in theory (cm³) | Injection weight (g) | Injection weight (oz) | Injection pressure (MPa) | Injection rate (g/s) | Plasticizing capacity (g/s) | Screw speed (rpm) | Clamping force (kN) | Moving mould-plate stroke (mm) | Max. mould height (mm) | Min. mould height (mm) | Space between tie-bars (mm) | Hydraulic ejector force (kN) | Hydraulic ejector stroke (mm) | Ejector number (n) | Pump pressure (MPa) | Motor power (kW) | Heating capacity (kW) | Machine dimension (m) | Machine weight (t) | Oil tank capacity (L) | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXA2500/44000 | 170 | 23 | 24059 | 21894 | 772.2 | 186 | 1424 | 127 | 65 | 25000 | 1900 | 1800 | 800 | 1850 x 1700 | 520 | 450 | 33 | 17.5 | 47+47+47+47 | 214.15 | 19.50 x 4.00 x 5.20 | 163.1 | 2700 | |
| HXB2500/44000 | 185 | 22 | 28493 | 25928 | 914.5 | 157 | 1686 | 170 | 65 | 25000 | 1900 | 1800 | 800 | 1850 x 1700 | 520 | 450 | 33 | 17.5 | 47+47+47+47 | 214.15 | 19.50 x 4.00 x 5.20 | 163.1 | 2700 | |
| HXC2500/44000 | 200 | 21 | 33300 | 30303 | 1068.8 | 134 | 1970 | 220 | 65 | 25000 | 1900 | 1800 | 800 | 1850 x 1700 | 520 | 450 | 33 | 17.5 | 47+47+47+47 | 214.15 | 19.50 x 4.00 x 5.20 | 163.1 | 2700 |
Pricing and lead time are quoted per order. Contact us with the model you are after.
